Reinforced door hinges

We manufacture our reinforced door hinges for armoured vehicles and stretch limousines on high-quality CNC lathe, 4 and 5 axle turning lathe and milling machines made of high-value steel.



The construction is certified with 20.000 cycle and a weight of 160 kg / 352 lb. With a door length of 1.200 mm the lowering of the door only adds up to 0,81 mm after 20.000 cycle. Our reinforced version is tested with 100,000 cycles and a door weight of 250 kg / 551 lb.

The bearing bushing of the hinges are maintenance free, the hinges are coated against corrosion corresponding to the type of vehicle (aluminium or steel car body).

The door hinges will be delivered in a series of 4, 8, 10 and 12.



    • Bentley

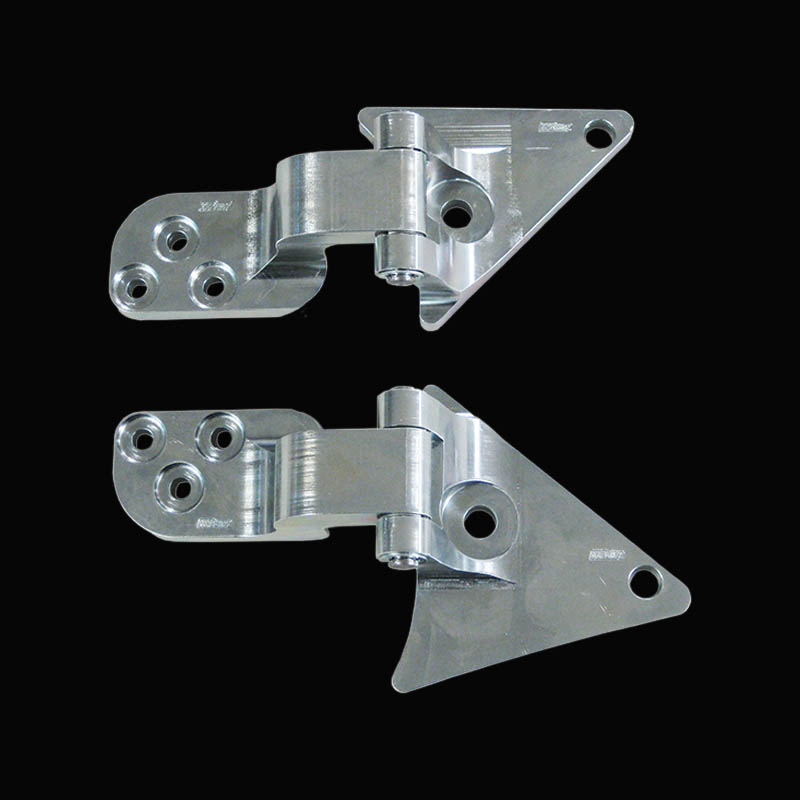

    • Fendt (kundenspezifische Sonderanfertigungen)

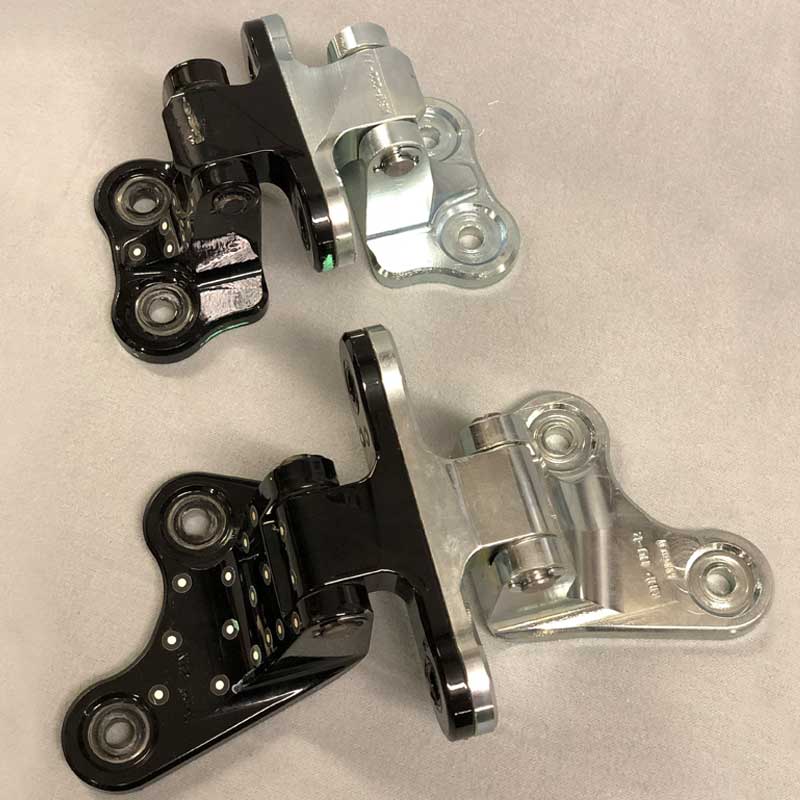

    • Maybach
    • Land Rover
    • Lexus
    • Porsche Cayenne
    • Rolls-Royce

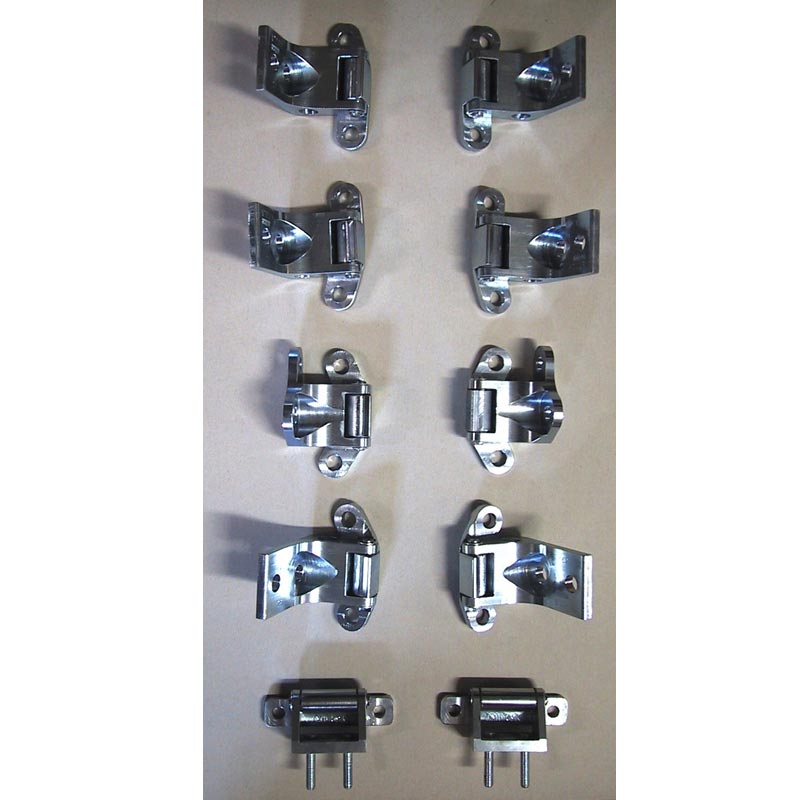

    • Nissan Patrol
    • Y62

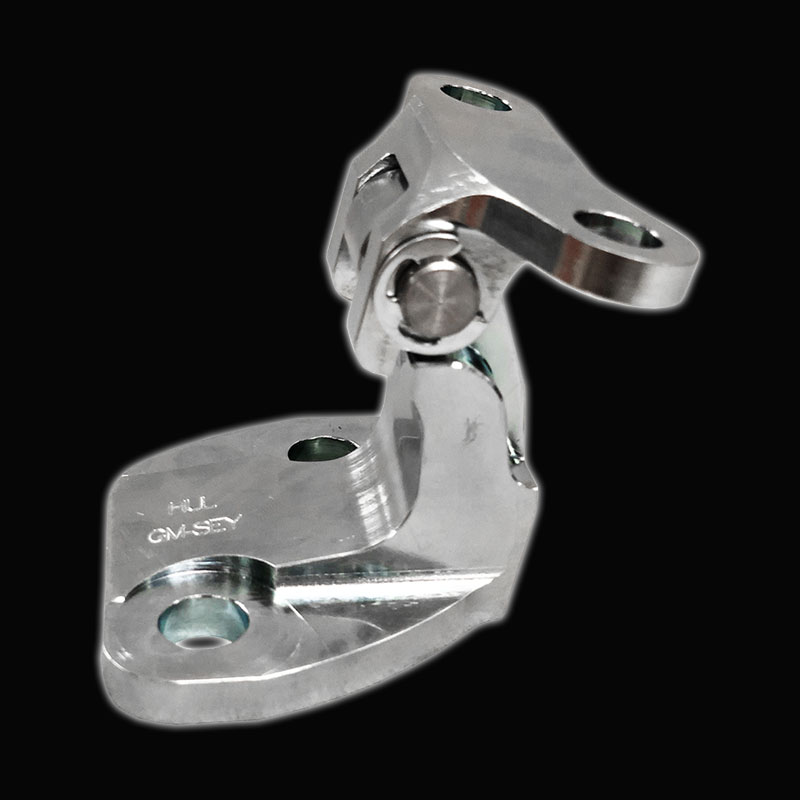

    • General Motors – GM
    • Escalade
    • Suburban
    • Yukon
    • GMC



    • Mercedes-Benz

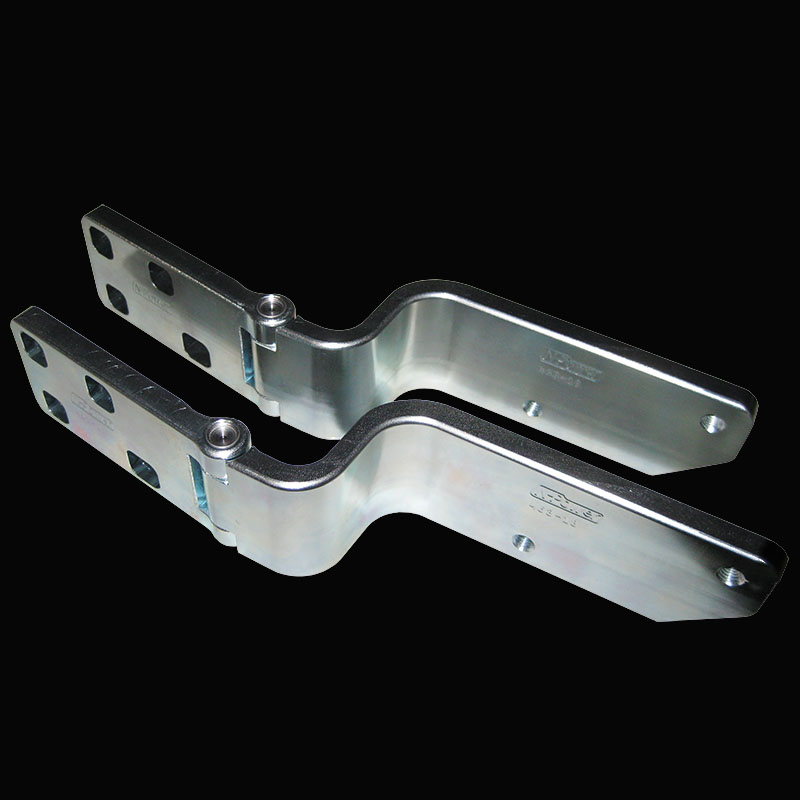

    • Sprinter W906

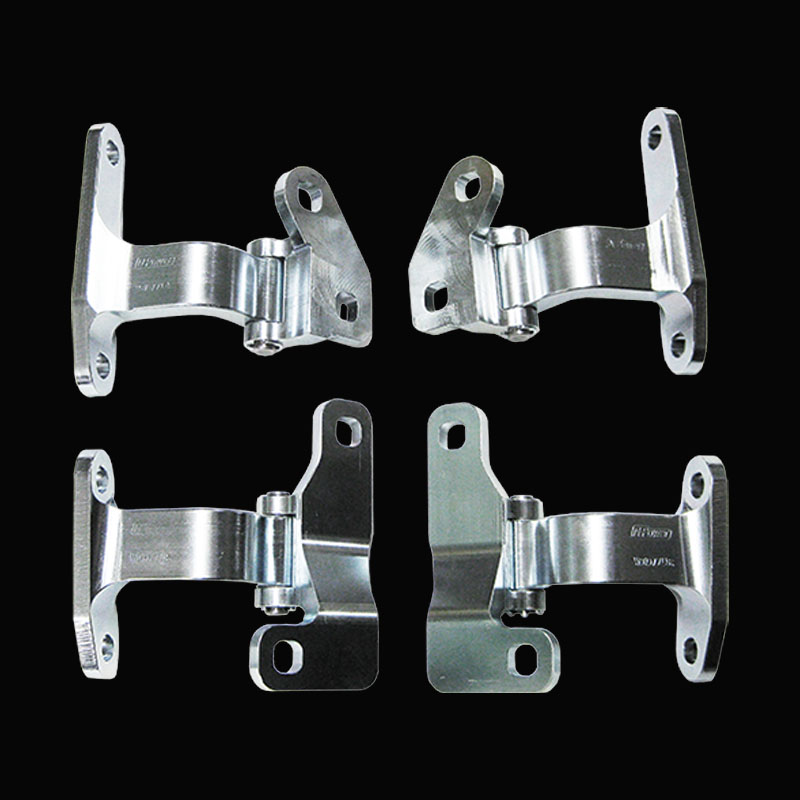

    • Sprinter W907
    • V447
    • V222
    • W222
    • W463 starting 2018



  • Toyota
  • Hilux
  • LC 76 / 78 / 79 ( only on special request )
  • LC 100
  • LC 120
  • LC 150
  • LC 200 ( only on special request )
  • LC 300

Your vehicle is not specified? Please contact us.
Single part and small batch production on request.
