Universal window lifter systems

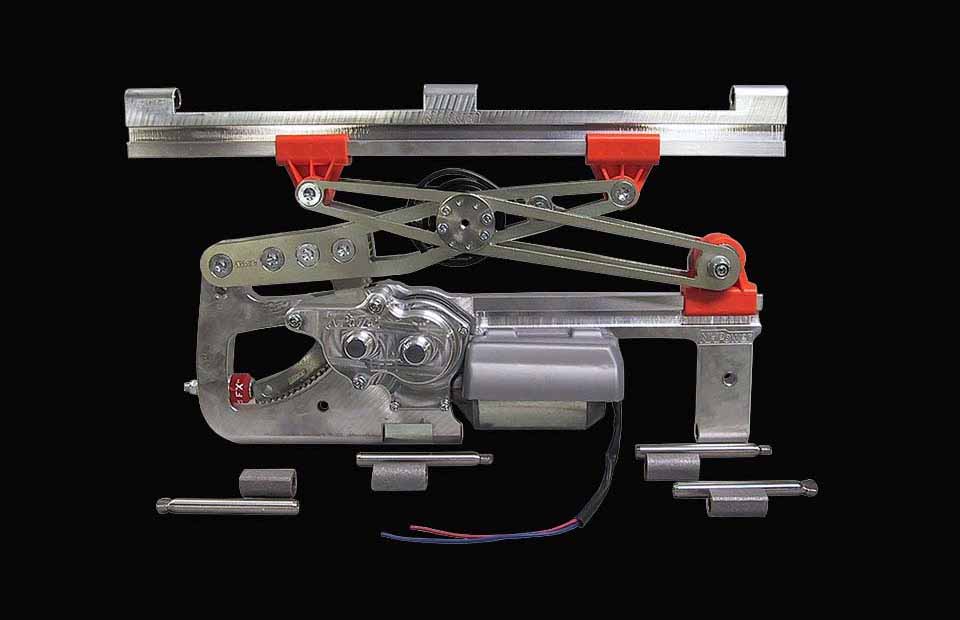

Scissor lifter and wire rope lifter
Powerful window lifter for special protection vehicles and other applications

For us, optimal protection starts with fast and powerful window lifters

  • Scissor actuator, lifting power up to 80 kg / 176 lb glass weight
  • Weight approx. 6 kg
  • Up/down speed about 3-4 seconds
  • Standard lift 180 mm
  • Depending on the glass weight, optional up to 230/260/300 mm lift
  • Pre-tension is adjustable to one or two springs Unlike pneumatic springs, no accomplishment differences between temperature variations of +/- 40°C.
  • Powered by specially developed powerful 250 watts gear motor
  • Available in 12 V and 24 V
  • Wire rope lifter are only manufactured on customer request and are not universally applicable
